Yamada NDP-40 AOD Pumps
Yamada NDP-40 Series pumps are the backbone of the industrial line. A unique, patented air-valve design ensures stall-free operation throughout product life. Bolted construction and common component replaceable parts maximize uptime and increase profitability. Yamada also offers pumps according ATEX 114 explosion safety guidelines in this model.
£922.50 – £3,123.90 ex VAT
Intake & discharge connection:
Polypropylene (PPG) 1-1/2″ 40 mm DN40 PN10

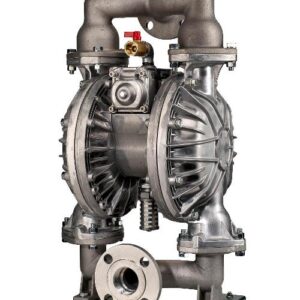

Aluminium(ADC-12) 1-1/2″ 40 mm DN40 PN10 (Combi Flange with tapped 1-1/2″ 40 mm Female Rc)

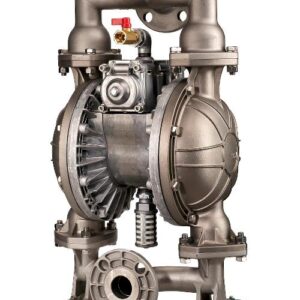

Stainless Steel (316) 1-1/2″ 40 mm DN40 PN10
Air inlet (incl. ball valve): 1/2″ 15 mm Female Rc
Air exhaust (incl. silencer): 1″ 25 mm Female Rc
Notes: Flange connections are equivalent to DN 40 PN 10 and JIS 10K 40A
Air Supply Pressure
1,4 – 7 Bar (0,14 – 0,7 MPa)
Discharge Volume Per Cycle
Rubber diaphragm: 2,74 liters
PTFE diaphragm: 1,40 liters
Maximum Cycles Per Minute
Rubber diaphragm: 148
PTFE diaphragm: 270
Maximum Size Solid
7,0 mm (9/32″)
Maximum Dry Suction Lift
Rubber-fitted pump capability: 5,5 m
Air Motor
Standard: Aluminium
Notes:
Santoprene®-fitted pumps include EPDM wetted o-rings.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Manufacturer |
